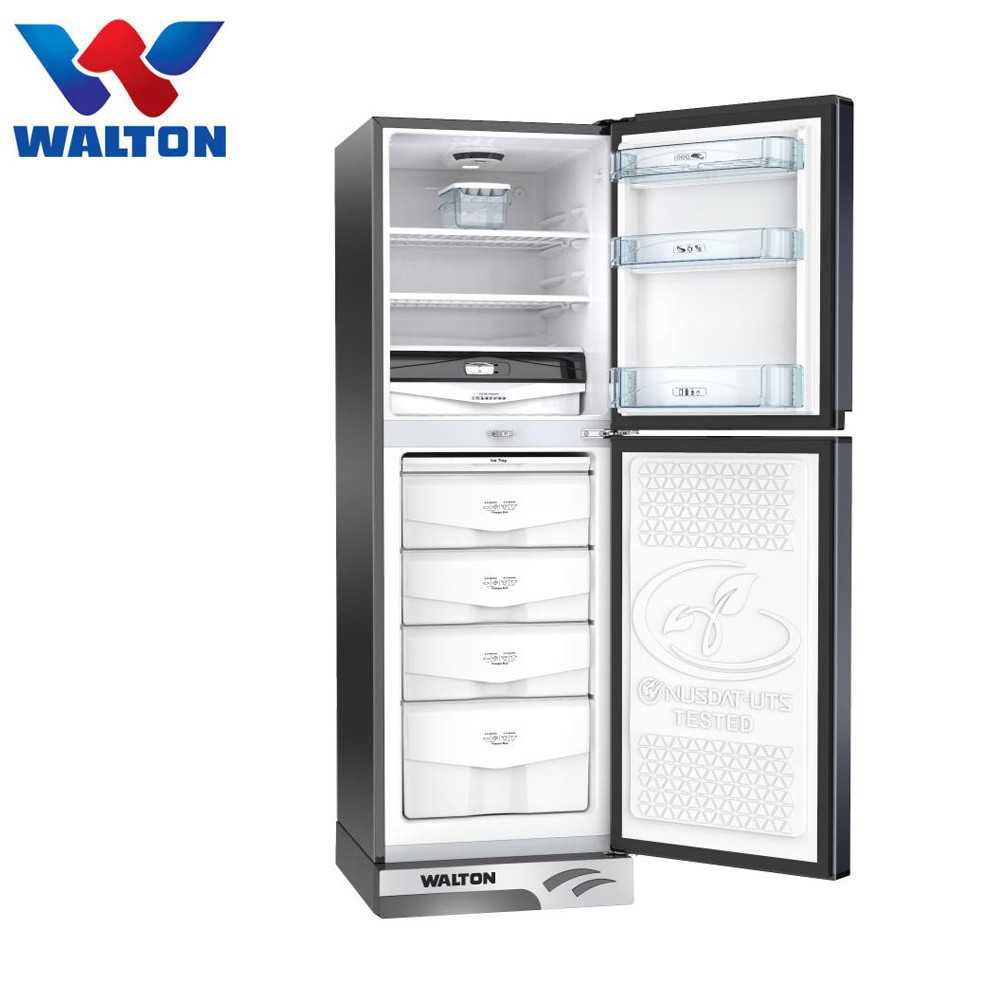

Product Description

 - Type: Direct Cool

   - Gross Volume: 358 Ltr

   - Net Volume: 345 Ltr

   - Refrigerant: R600a

Cooling Features :

Type Direct Cool

Capacity :

Gross Volume 358 Ltr.

Net Volume 345 Ltr.

Net Weight 76.5 ± Kg

Gross Weight 84 ± Kg

Performance :

Climate Type (SN, N, ST, T) N ~ ST

Rated Voltage/ Hz/ watt 220~240/ 50/135

Compressor Input Power (Watt) V 0102- 130

V 0301- 123

Compressor Type V 0102- RSCR

V 0301- RSCR

Cooling Efect Freezer Cabinet Less than -18 ̊C

Refrigerator Cabinet 0 ̊C to +5 ̊C

General Features :

Temperature Control (Electronic/ Mechanical) Mechanical

Defrosting (Automatic/ Manual) Manual

Reversible Door No

Handle (Recessed/ Grip): Recessed

Lock Yes

Refrigerant V 0102- R600a

V 0301- R600a

Condenser V 0102- Copper

V 0301- Copper

Thermostat RoHS Certified

Capillary V 0102- Copper

V 0301- Copper

Polyurethane foam blowing agent Cyclopentene [Eco-friendly (100% CFC &

HCFC Free) Green Technology]

Recommended voltage stabilizer capacity No Need To use Voltage stabilizer.

NB: If out of voltage range(140V-260V), Then suggested 2100VA.

Refrigerator Compartment :

Shelf (Material/ No.) Wire/2

Door Basket Yes/3

Interior Lamp Yes

Vegetable Crisper Yes/1

Vegetable Crisper Cover Yes

Egg Tray or Pocket Yes

Can Storage Dispenser No

Deodorizer No

Freezer Compartment :

Shelf (Material/ No.) Rack Evaporator

Drawer Yes/4

Ice Tray Yes/1

Ice Case Yes/2

Ice Remover spoon Yes/1

Door Basket No

Interior Lamp No

Net Dimensions :

Width/mm 585

Depth/mm 711

Height/mm 1825

Packaging Dimensions :

Width/mm 625

Depth/mm 745

Height/mm 1830

Loading Capacity- 40HQ/ 40Ft/ 20Ft 76/ 57/ 27

Warranty Information:

Residential Use:

- Replacement Guarantee (Compressor, Chamber, Condenser): 1 Year

- Main Parts (Compressor): 12 Years

- Spare Parts: 4 Years *

- After Sales Service:5 Years *

Commercial Use:

- Main Parts (Compressor): 4 Years

- Spare Parts: 2 Years *

- After Sales Service: 2 Years *

Note:

THIS WARRANTY DOES NOT COVER THE FOLLOWING CASES:

1. Any damage due to accident, electrical fault, natural causes, negligence or improper installation.

2. Any damage or failure caused by unauthorized modification or alteration.

3. Products with original serial numbers that have been removed, distorted or cannot be readily recognized.

Authority keeps the right to change, extend, correct, stop or cancel the warranty period without any prior notice.

*This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
